Bharat 101 4G GPS Tracker with CAN
A state-of-the-art 4G GPS tracker designed for real-time tracking and monitoring, ideal for fleet management and vehicle security.
Key Features:
- Real-time GPS tracking with 4G connectivity
- CAN Bus support for vehicle diagnostics
- Rugged design with IP67 rating for water and dust resistance
- Supports fuel monitoring and engine diagnostics
- Geofencing and motion alerts for enhanced security
Use Cases:
- Fleet management and vehicle tracking
- Real-time vehicle diagnostics and fuel monitoring
- Personal and vehicle security
- Ensuring compliance with government tracking regulations
Advantages:
- Comprehensive vehicle monitoring with CAN support
- Accurate real-time tracking and alerts
- IP67-rated durable design for harsh environments
- Easy to integrate with fleet management software
- 24/7 customer support from QTLoads

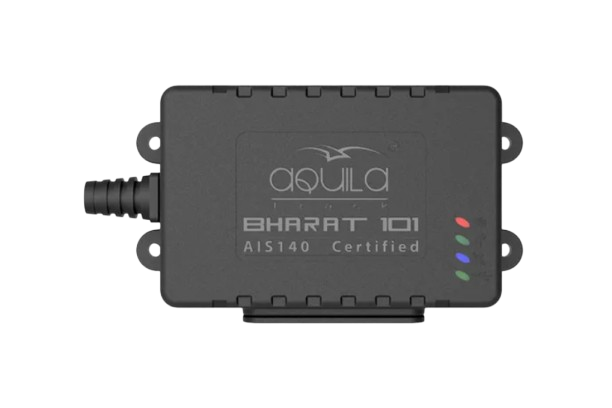

Bharat 101 4G GPS Tracker with CAN
A 4G-enabled GPS tracker with advanced vehicle monitoring features, including CAN Bus support.
Detailed Description
The Bharat 101 4G GPS Tracker is designed to provide reliable tracking for vehicles, offering real-time data, fuel monitoring, and engine diagnostics through its CAN Bus integration.

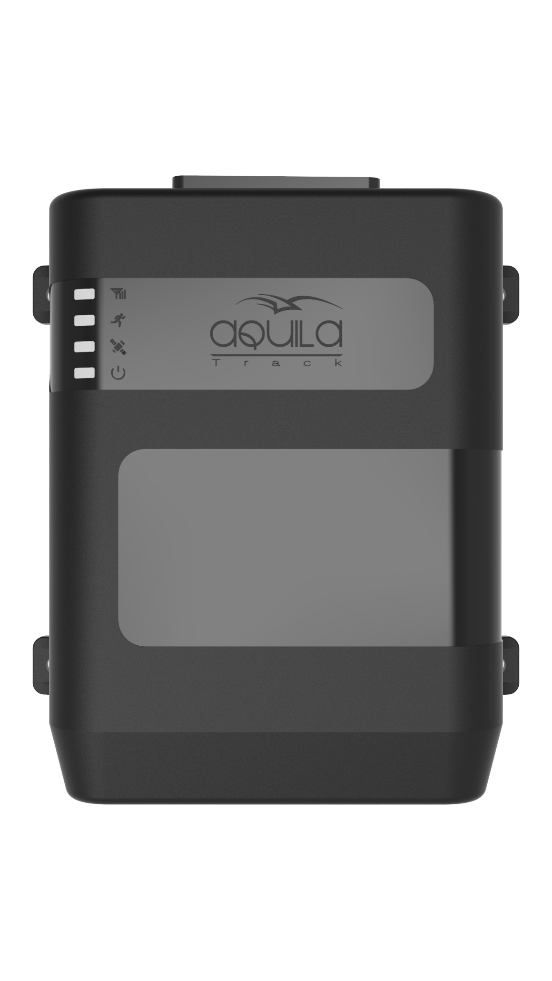

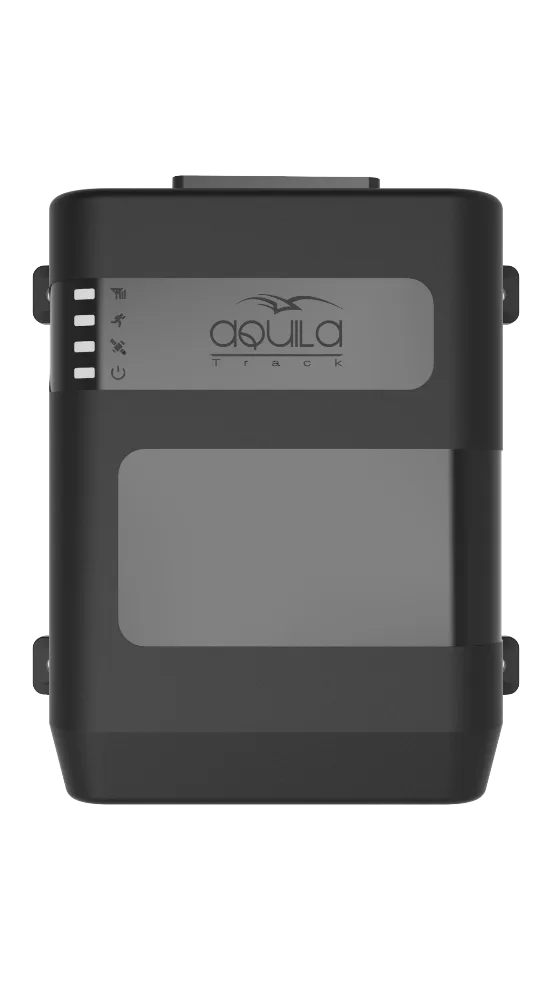

The Bharat 101 PLUS 4G is a cutting-edge, AIS140-certified 4G telematics tracking device designed for high-performance fleet management and vehicle tracking. Encased in a rugged IP65-rated shell, this compact black box delivers next-gen communication capabilities with fast processing power and multiple interface options. Its internal antennas allow for stealthy installations, making it ideal for logistics, taxi operations, car/bike rentals, security tracking, insurance telematics, and asset management. This versatile device ensures efficient tracking and monitoring, empowering businesses with seamless, reliable, and future-ready fleet management solutions.
Specifications
| Features | Particulars | ||
|---|---|---|---|
| Cellular | 2G | 900/1800 MHz | |
| LTE-Cat1 | B1, B3, B5, B8, B34, B39, B40, B41 | ||
| Short Range | BLE | 5 | |
| Navigation | GNSS | GPS+IRNSS | |
| External | AIN | 2 Nos | |
| Interfaces | DOUT | 2Nos | |
| (300mA Low Side Drive) | |||
| DIN | 5 Nos | ||
| RS232 | 1No | ||
| RS485 | 1No | ||
| Wake-up Sources | IGN | Yes | |
| Panic | Yes | ||
| ACC | Yes | ||
| Power | Yes | ||
| Tamper | Yes | ||
| Indications (GPS, Process, NetLight, Power) | 4Nos | ||
| Power Supply | 8-32V DC | ||
| Sleep mode Current | <5mA | ||
| Internal Battery | 850mAH | ||
| LTE Antenna | Internal PCB | ||
| GNSS Antenna | Internal Ceramic Patch Antenna | ||
| BLE Antenna | Internal PCB | ||
| Sensors | Accelerometer and Gyro | ||
| SIM | eSIM and NanoSIM | ||
| Data Storage -1 | 16MB | ||
| Load Dump | ISO 7637-2 Pulse 5a, 5b | ||
| EMI/EMC | AIS-004 | ||
| Enclosure | Plastic | ||
| ESD Protection | 8kV | ||
| IP | IP65 | ||
| Operating Temp | -25 to +85deg | ||
| Storage Temp | -40 to +85deg | ||
| Battery capacity | 800mAH | ||
| Vibration | Frequency 5 – 40 Hz, Acceleration 3G condition, Duration 100 hours (Test duration shall be 32 h for each plane) | ||
| High Temperature Operating Endurance | ISO 16750-4, Clause 5.1.2.2 | ||
| Thermal Shock | ISO 16750-4 | ||
| Mechanical shock | ISO16750-3,500m/s^2, 6ms, 15G at 10 shocks per test direction | ||
Features
AIS 140 Certification
IP67 rating - dustproof & waterproof
Motion Sensor, Accelerometer, Gyroscope
Automotive ECU Type Connector
Main Battery Removal Alert
Easy Installation and Configuration

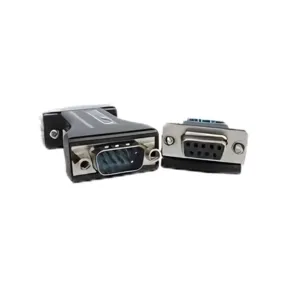

Interface : 1x RS232; 1x RS485
2 Analog Inputs 5 Digital Inputs & 2 Digital Output

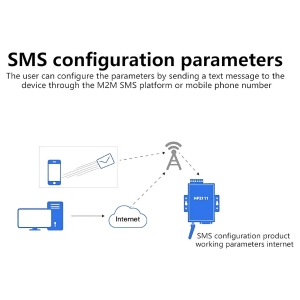

All Parameter Configuration through SMS & USB
Long Battery Backup up to 8 hrs with inbuilt 800mAh Battery
Low power consumption & power optimization
Product Comparison
| Model | Input Voltage | Weight | Battery | Operating Temperature | Water Resistance |
|---|---|---|---|---|---|
| Bharat 101 4G | 8-32V DC | 100g | 850mAH | ISO 16750-4, Clause 5.1.2.2/td> | IP67 |
| Bharat 101 2G | Wide DC input voltage range (9V - 32V) | ~206g | 850mAh, 6hrs Backup* | Operating: -25°C to +85°C | IP67 |
| TS 101 EV_CAN | Wide DC input voltage range (9V - 32V). (Optional 9V-90V for EV Support ) | ~134g | 600mAh, 3 to 5 Hr backup | Operating: -25°C to +85°C | IP65 |
