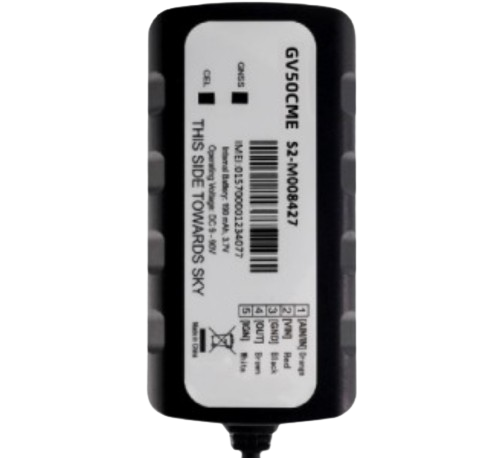

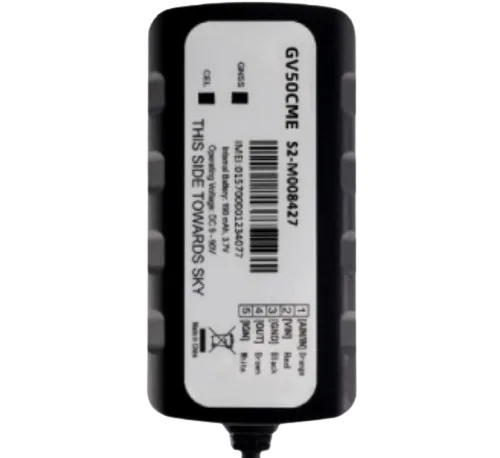

Queclink GV50CME GPS Tracker
A versatile and high-performance GPS tracker tailored for various business applications and personal use.
Key Features:
- Reliable real-time GPS tracking
- Compact and lightweight design
- Extended battery life for consistent monitoring
- Durable with IP66 water and dust resistance
- Supports geofencing and motion alerts
Use Cases:
- Efficient fleet management and vehicle monitoring
- Ensures personal safety for individuals
- Tracks valuable goods and assets
- Outdoor activity tracking for adventure enthusiasts
Advantages:
- Quick and easy setup
- Cost-effective subscription plans available
- Real-time data accessible via a mobile-friendly app
- 24/7 customer support from QTloads
Queclink GV50CME GPS Tracker
A powerful and durable GPS tracker offering seamless performance for various applications.
Swipe right
Swipe left
Detailed Description
The Queclink GV50CME GPS Tracker provides precise tracking capabilities for monitoring your assets effortlessly, with an easy-to-use interface.
>Introducing the GV50 Plus a compact and discreet vehicle tracking solution that enhances the original GV50 with ignition detection and basic vehicle control capabilities. This micro device ensures effortless and covert installation, making it an ideal choice for auto financing, stolen vehicle recovery, and essential tracking applications. For added protection, the GV50 Plus can be seamlessly integrated with our battery-powered asset products, providing comprehensive security for your vehicles. Experience peace of mind with this innovative tracking solution!Specifications
| General Specifications | Details |
|---|---|
| Dimensions | 76 (L) × 39 (W) × 16 (H) mm |
| Weight | 71.5 g |
| Backup Battery | Li-Polymer, 190 mAh |
| Operating Voltage | 9 ~ 90V DC |
| Operating Temperature | -30℃ ~ +70℃ -40℃ ~ +80℃ for storage |
| Buffer Messages | Up to 10,000 buffer messages |
| BLE | BLE 5.2 |
| LTE Specifications | Details |
| Operating Band | LTE FDD: B1/B3/B7/B8/B20/B28 |
| Data Transmission | LTE-FDD: Max 10 Mbps (DL) / Max 5 Mbps (UL) |
| GSM Specifications | Details |
| Frequency | 900 / 1800 MHz |
| Data Transmission | EDGE: (DL) 236.8 Kbps / (UL) 236.8 Kbps GPRS: (DL) 85.6 Kbps / (UL) 85.6 Kbps |
| GNSS Specifications | Details |
| GNSS Type | High-precision GNSS receiver |
| Constellation Support | GPS, Beidou |
| Sensitivity | Cold start: -147 dBm Hot start: -155 dBm Tracking: -160 dBm |
| Position Accuracy (CEP) | Autonomous: < 2.0 m |
| TTFF (Open Sky) | Cold start: 28 seconds average Hot start: 1 second average |
| Interfaces | Details |
| Digital Input | 1 x positive trigger input for ignition detection |
| Configurable Input | 1 x configurable input for analog input (0V ~ 16V) or negative input |
| Latched Digital Output | 1 x digital output with one internal latch circuit, open drain, 150 mA max drive current |
| Cellular Antenna | Internal only |
| GNSS Antenna | Internal only |
| LED Indicators | Internal only |
| Micro USB Interface | Used for configuration, upgrade, and debugging |
| Air Interface Protocol | Details |
| Transmission Protocol | TCP, UDP, SMS |
| Scheduled Report | Report position and status based on preset time intervals, distance, mileage, or a combination of these settings |
| Geo-fences | Geo-fence alarm and parking alarm, support up to 20 internal geo-fence regions |
| Speed Alarm | Flexible speed monitoring for unusual speed alarm |
| Low Power Alarm | Alarm when backup battery is low |
| Power On Report | Report when the device is powered on |
| Tow Alarm | Alarm for tow event in ignition-off state |
| Driving Behavior Monitoring | Aggressive driving behavior detection, including harsh braking, acceleration, etc. |
| Crash Detection | Accident data collection for reconstruction and analysis |
| Remote Control | OTA control of digital outputs |
| SOS Alarm | Alarm message report triggered by panic button in emergency situation |
| Virtual Ignition Detection | Based on voltage and accelerometer |
| Jamming Detection | Alarm based on jamming detection |
Features
OTA Control
BLE 5.2
Geo-Fence Alarms
Tow Alarm
SPEED ALARM
Driving Behavior Monitoring
Crash and Tow Detection
Emergency Alarm
Fuel Monitoring and Cut-Off
Ignition Detection
ANTI-THEFT
ANTI-JAMMER
Product Comparison
| Model | Input Voltage | Weight | battery | Operating Temperature | Water Resistance |
|---|---|---|---|---|---|
| GV50CME | 9 ~ 90V DC | 71.5g | Li-Polymer, 190 mAh | -30℃ ~ +70℃ -40℃ ~ +80℃ for storage |
IP67 |
| GV56 | 8V to 32V DC | 55g | Li-Polymer, 170 mAh | -30℃ ~ +80℃ -40℃ ~ +80℃ for storage |
IP67 |
| GV305CEU | 8V to 32V DC | 92g | Li-Polymer, 250 mAh | -30℃ ~ +70℃ -40℃ ~ +80℃ for storage |
IP66 |
